Advancing Performance Technology for a Premier Houston Stage

As one of Houston’s most recognized and respected performing arts institutions, Alley Theatre maintains an uncompromising standard for artistic and technical excellence. Conversations surrounding this project focused on one primary goal: modernizing and strengthening the performance audio infrastructure while preserving the precision and reliability demanded by professional theater production.

Leadership and technical teams emphasized several priorities—maintaining sonic consistency across the performance space, ensuring redundancy in critical systems, improving loudspeaker coverage, and separating performance processing from non-performance systems for greater operational clarity.

The discussions reflected the realities of a major regional theater: complex staging, demanding show schedules, evolving production requirements, and the need for resilient systems that can support both current and future artistic vision.

The Challenge

The Alley Theatre required a phased upgrade to its performance loudspeaker and digital signal processing (DSP) infrastructure.

Alley Theatre Needed:

The existing system had served well but required modernization to:

Improve loudspeaker performance and coverage consistency
Replace aging speaker models with updated Meyer Sound technology
Enhance system processing power and redundancy
Provide expanded analog output capacity
Separate performance audio processing from paging and program systems
Modernize control interfaces for front-of-house and stage management teams

The challenge was to execute these upgrades without disrupting the operational demands of a professional producing theater.

Covenant’s Plan and Solution:

Working closely with project stakeholders, Covenant executed a two-phase installation designed to strengthen both the loudspeaker system and the digital processing backbone of the venue.

Phase I – Loudspeaker System Upgrades

Covenant completed installation of a comprehensive loudspeaker system update, including:

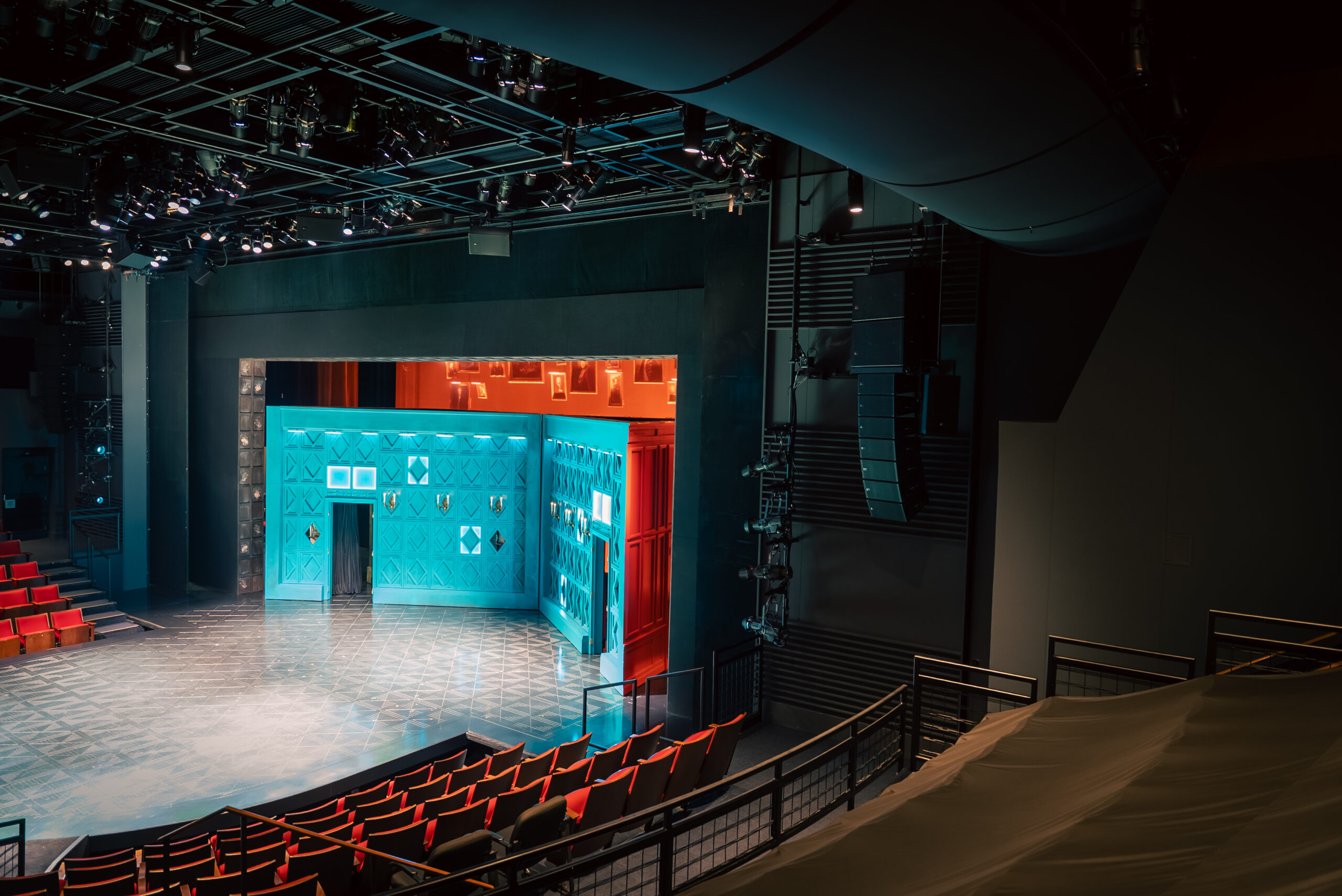

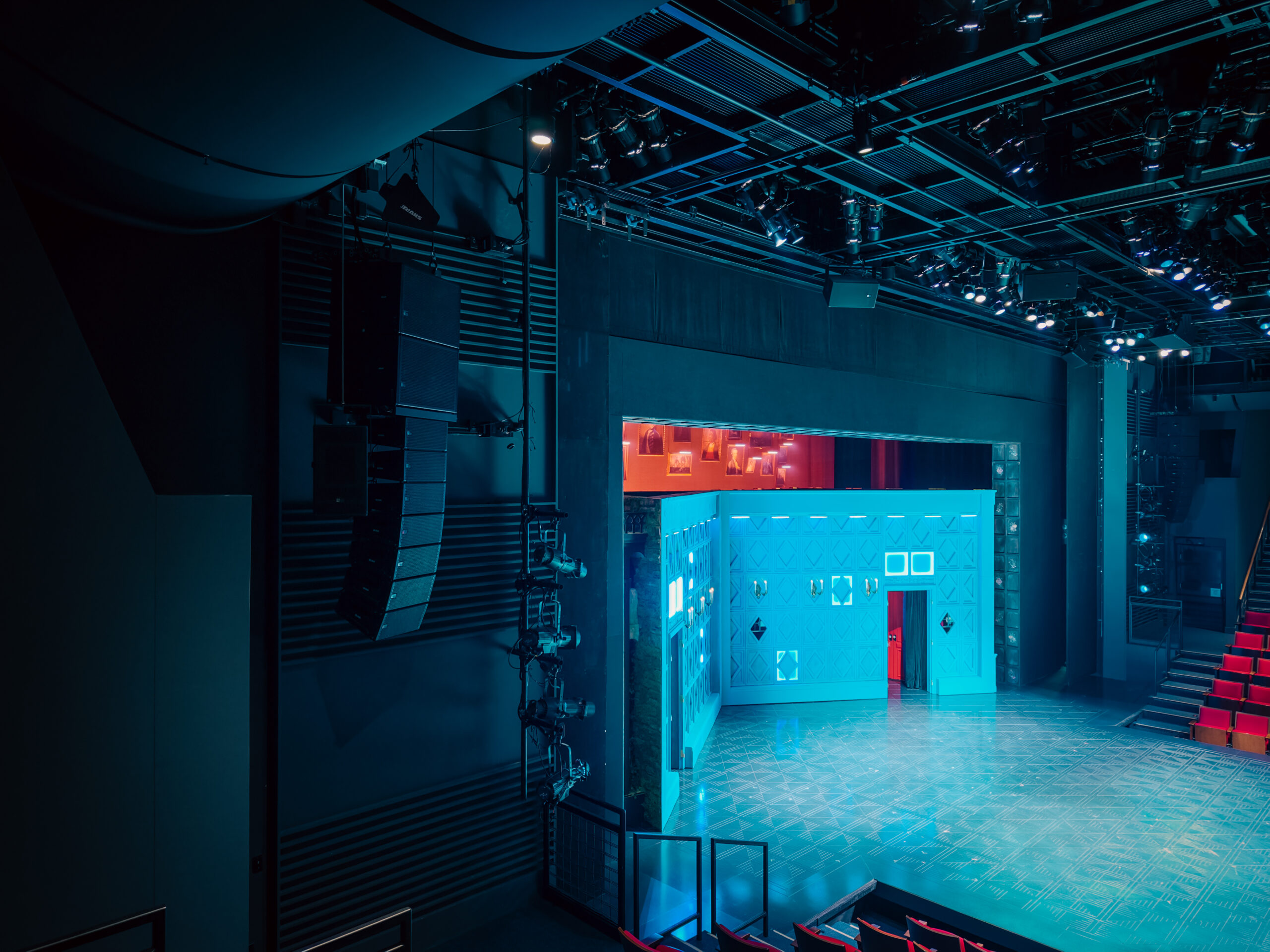

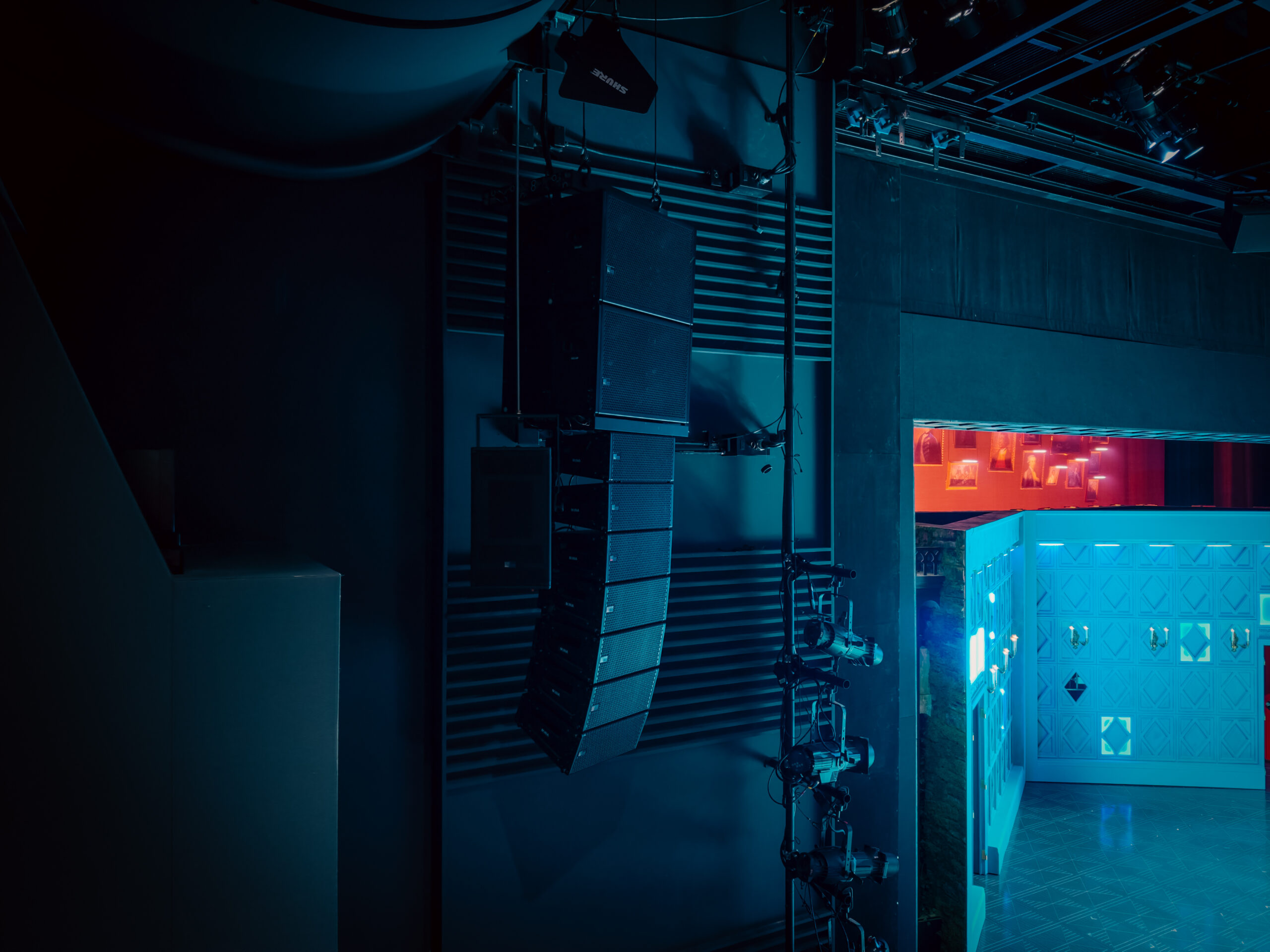

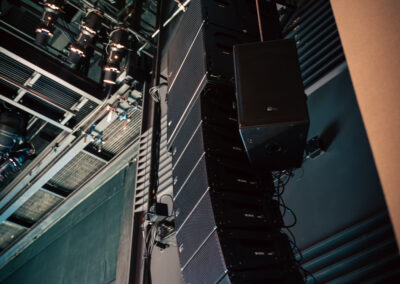

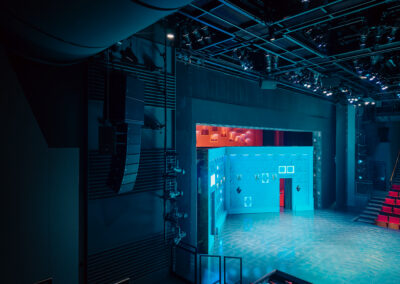

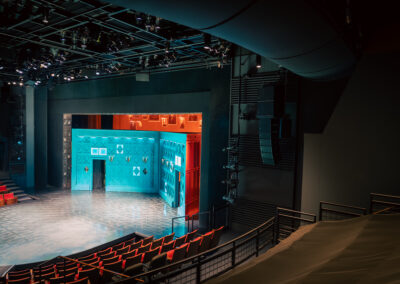

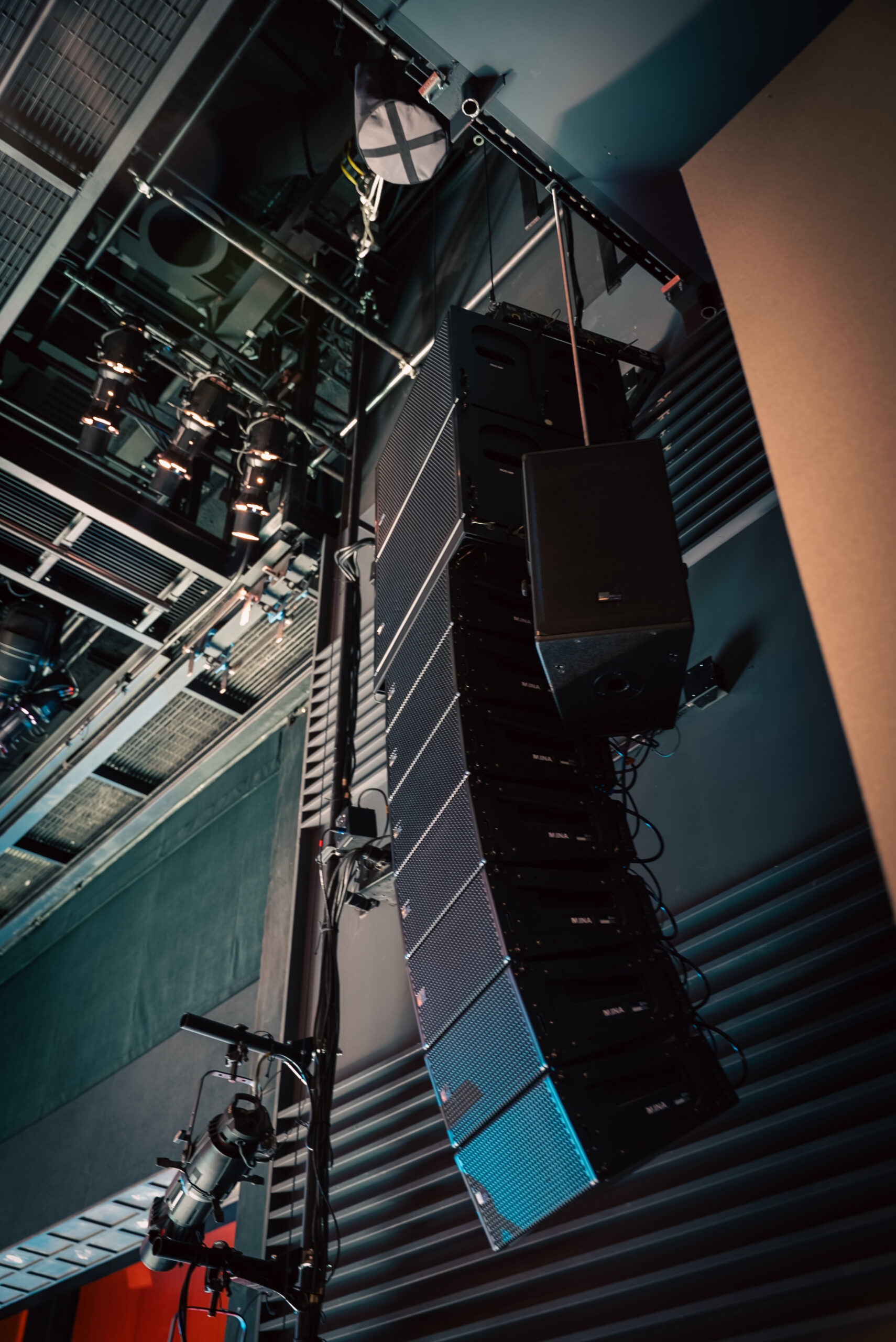

Relocation of existing Meyer Mina arrays to new fixed rigging locations to optimize coverage.
Replacement of legacy UPA and UPQ loudspeakers with nine (9) Meyer Sound X-40 loudspeakers, installed in landscape orientation on U-brackets.
Replacement of Mina cluster side fills with two (2) Meyer X-42 loudspeakers in portrait orientation
Addition of two (2) X-22 sidefill loudspeakers to extend coverage to far seating areas.
Replacement of delay loudspeakers with ten (10) X-22 units for improved tonal consistency and intelligibility.

The result was a refined loudspeaker ecosystem designed to deliver balanced coverage, improved clarity, and consistent tonal performance throughout the theater.

Phase II – Digital Signal Processing & System Control Modernization

Covenant upgraded and reorganized the venue’s signal processing architecture
to improve flexibility, capacity, and redundancy. Key components included:

Replacement of performance loudspeaker processing with a Yamaha DME7 DSP platform, including a redundant unit for system reliability.
Expansion of analog output capacity using multiple Tascam ML-32D units across amp room and stage rack locations.
Replacement of non-performance DSP systems with a Q-Sys Core 110F platform to manage paging, program audio, and support systems.
Integration of QIO analog I/O expansion modules.
Installation of three Q-Sys TSC-70 touchpanels with paging microphones located in the FOH Manager Office, Stage Manager Office, and Basement Dress Circle.
Additional control integration for Texas/Louisiana side rooms, including touchpanel control and wireless mic/aux input routing options.

By separating performance DSP from paging and program processing, Covenant enhanced operational clarity and system stability—ensuring that artistic audio systems remain optimized while facility systems operate independently.

Lessons Learned

This project reinforced the importance of infrastructure scalability in professional theater environments. Performance venues of this caliber require not only exceptional sound quality but also redundancy, routing flexibility, and long-term adaptability.

The phased approach also demonstrated the value of strategic modernization—updating critical components without overhauling the entire system at once, preserving operational continuity while advancing technical capability.

Key Takeaways and Ongoing Partnership

Covenant’s work at Alley Theatre reflects a shared commitment to technical precision and artistic excellence. The upgraded loudspeaker and DSP systems now provide improved clarity, expanded processing capacity, and greater operational reliability.

Covenant remains engaged as a technical partner, supporting ongoing maintenance,
system optimization, and future planning. In a theater where every detail matters, reliable performance technology ensures that audiences experience each production exactly as intended.
